Kml2Latex

Activation

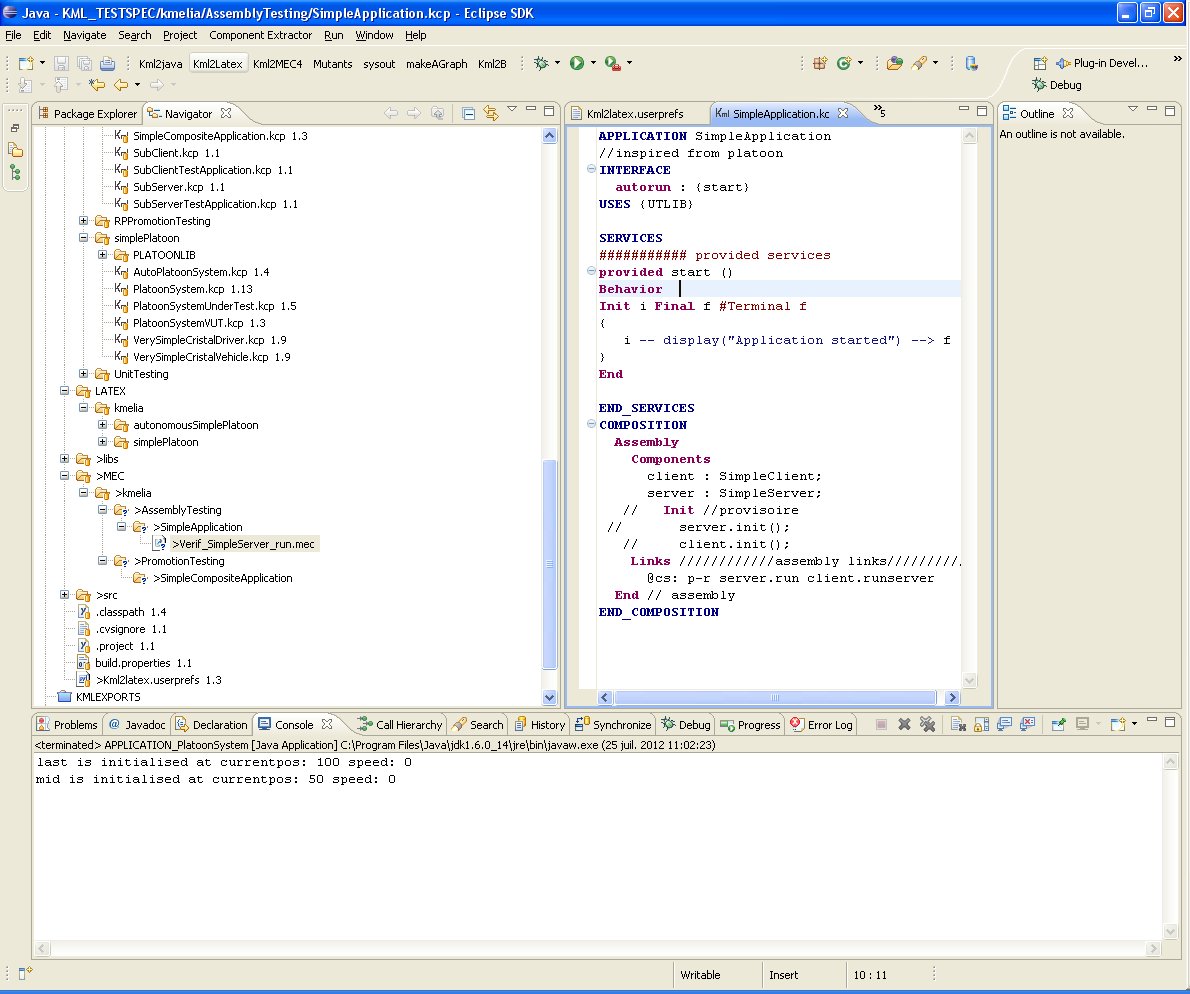

Action button (available when a Kmelia specification is edited).

Parameters

The settings are provided by a Kml2latex.userprefs

As an example, copy the following lines (except the first one) in the file Kml2latex.userprefs, located at the root of your Kmelia project.

remove the first line from the copy and add it to ''.cvsignore'' if you use a CVS client.
# Copy this file as Kml2latex.userprefs, remove this line from the copy and add it to .cvsignore
#
# User preferences :
# ###################################
# WARNING !
# The Costolib.userprefs file contains system-specific values
# Please put it in your .cvsignore
######################################
# June 2009

#architecture Linux/Windows
#costo.archi=windows
costo.archi=windows
costo.user=pascal

# base directory defaults to the directory from where Costo is launched.
# if for some reason you need the  tools to look elsewhere
# remove Win or Lin and put your real directory ( windows users please note the \ in C\:  )
#costo.basedir=C:/Travaux/COLOSS/COSTOLIB/
costo.Winbasedir=C:/Documents and Settings/
costo.Linbasedir=/home/

kmlToLatex.latexdir=E:/Travaux/COLOSS/LATEX

#Documentation
costo.version=1.0
costo.author=Coloss
costo.comment=Benchmark version

#dot commands
dot.command=dot
windows.dot.command="C:/Program Files/ATT/Graphviz/bin/dot"
#windows.dot.command="C:/Program Files/Graphviz 2.28/bin/dot"
linux.dot.command=/usr/bin/dot

#put in the system path variable
dotPathPreference="C:/Program Files/ATT/Graphviz/bin/dot"
#dotPathPreference="C:/Program Files/Graphviz 2.28/bin/dot"

Result

The result is a directory of latex and image files. If the directory of the specification is

/kmelia/project1/component.kcp

The files are generated in

/LATEX/kmelia/project1/component/...
